NBR Dia. 21 LNER Dia. 33B brake van (narrow planked) (Kit Ref 9106)

The prototype

This kit is for the rebuilt version of the original Holmes design of 1890 (kit 9105), with the broad planking replaced by standard width narrow planking. In addition to those retaining the clasp brakes, many were built with single push-on brakes with the tare weight reduced to 10.0.0. Optional parts are included to allow for either type. With 40 surviving to the 1940 LNER census, only 2 were left by 1947. It is unlikely that any made it into nationalisation.

The kit

Please click on the thumbnails below to see larger images of a model built from this kit.

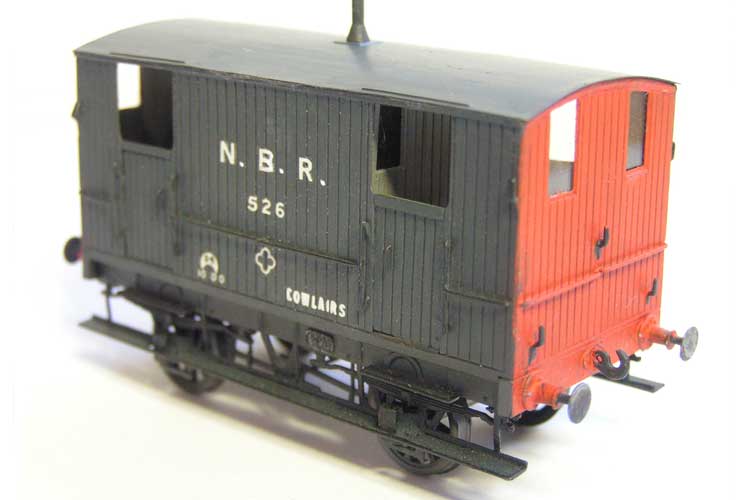

Production model of kit 9106 - built by Ian Terrell
Production model of kit 9106 - built by Ian Terrell   |  click on image to close
Production model of kit 9106 - built by Ian Terrell
Production model of kit 9106, in NBR livery - built by Ian Terrell   |  click on image to close

This product is for future release.

The kits of NBR Goods Brake Vans are in 0.3mm brass and includes white-metal castings and brass wire.

W-irons, wheels, paint and transfers will require to be purchased seperately to complete.

Please click on the image below to see a larger drawing of the brake van.

Kit 9106: NBR Dia. 21 LNER Dia. 33B brake van (narrow planked)

NBR Dia. 21 LNER Dia. 33B (narrow planked)
NBR Dia. 21 LNER Dia. 33B (narrow planked) - Kit 9106   |  click on image to close
